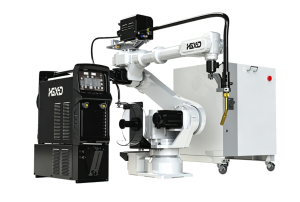

Arc Welding Machine Set

Fully Self-Developed · One-Stop Solution for Arc, Laser and Spot Welding Automation

Perceiving Real Space ｜ Understanding Physical Laws ｜ Autonomous Physical Interaction

Defining New Standards for Complete-Machine Welding

Every aspect, from body design to control algorithms, has been rigorously validated

Advanced Technology · Fully Digital Precision Control

Adopting advanced German technology with a fully digital circuit design, it precisely controls the output waveform and droplet transfer for concentrated arc energy, stable and controllable output, and precise, consistent welding.

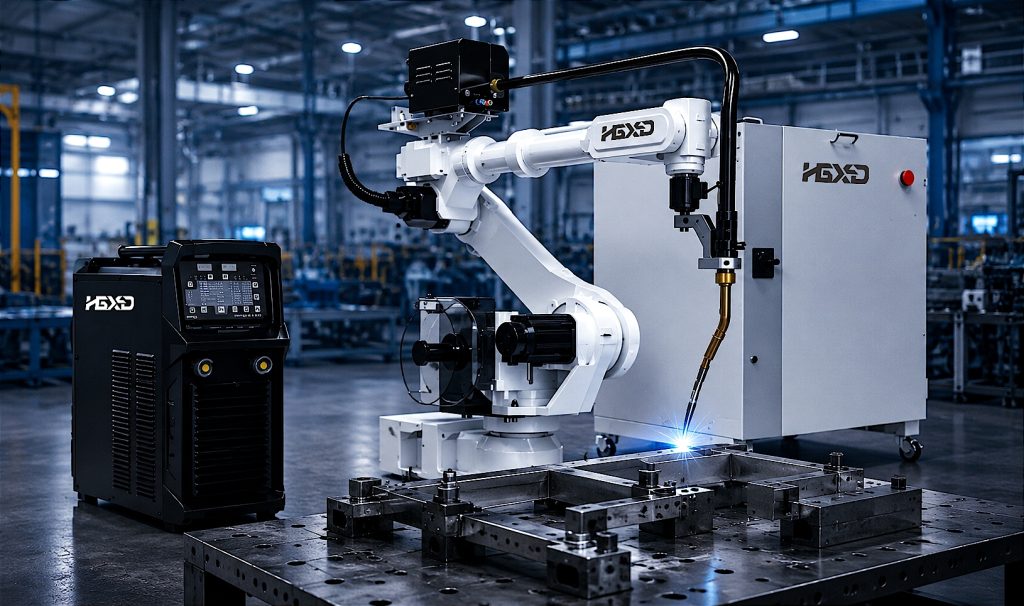

High-Efficiency Welding · Ultra-Low Spatter

- Ultra-thin plate module: high-speed cold welding process, ultra-low current arc striking, concentrated arc energy and low heat output, greatly suppressing spatter;

- Medium-thick plate module: constant-penetration process, high-speed vertical-up welding and high-speed pulse, with clear rippled weld beads and almost no spatter.

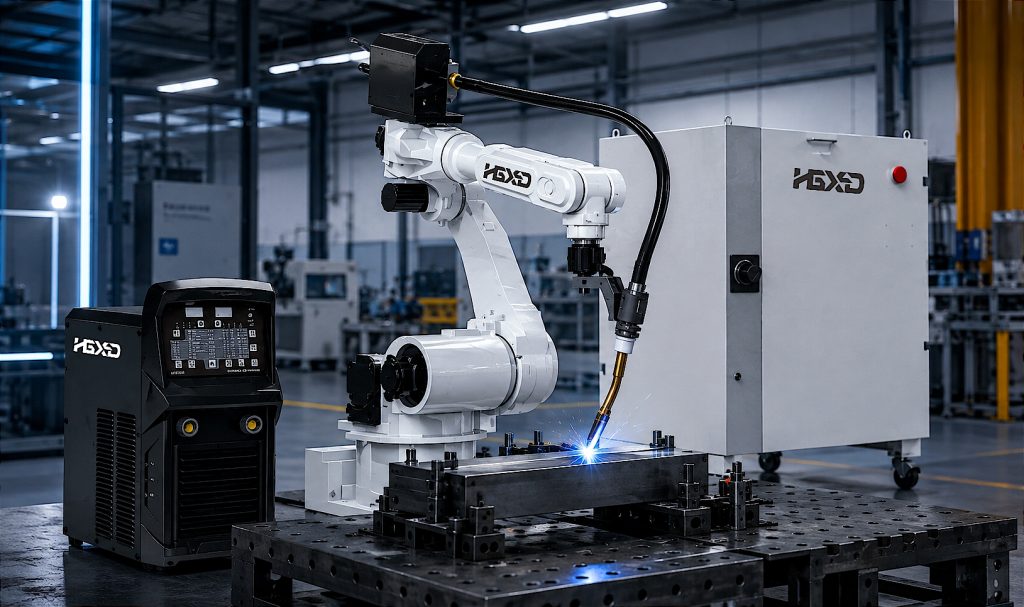

Ultra-Thin to Medium-Thick · Full Plate-Thickness Coverage

- Ultra-thin plate module (≥0.4mm): stably welds 0.4–1.5mm plates, suitable for automobiles, electric vehicles, metal furniture and chassis;

- Medium-thick plate module (≥4mm): for machinery manufacturing, automotive parts, shipbuilding, bridges and hardware manufacturing.

Full-Type Adaptation

Covering diverse weld seam configurations and handling all scenarios with ease

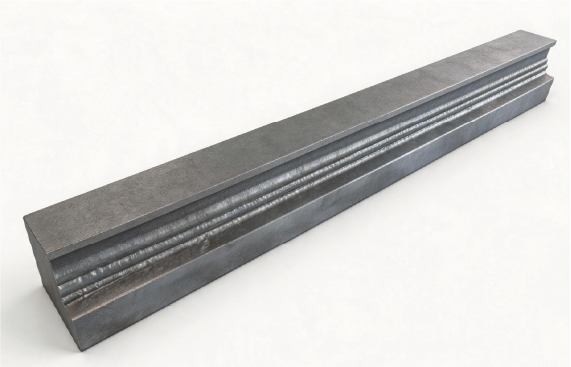

Multi-Layer, Multi-Pass Welding

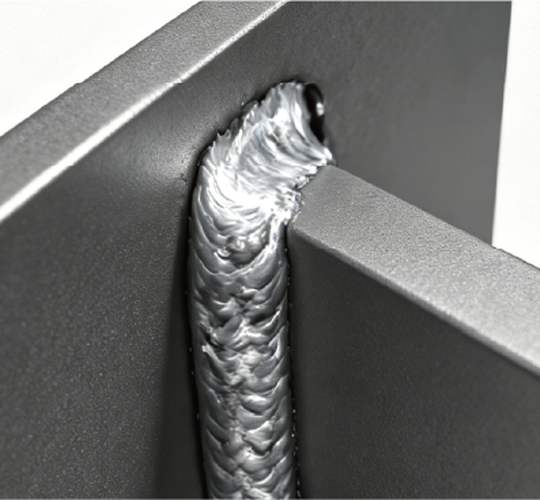

Wrapped-Corner Welding

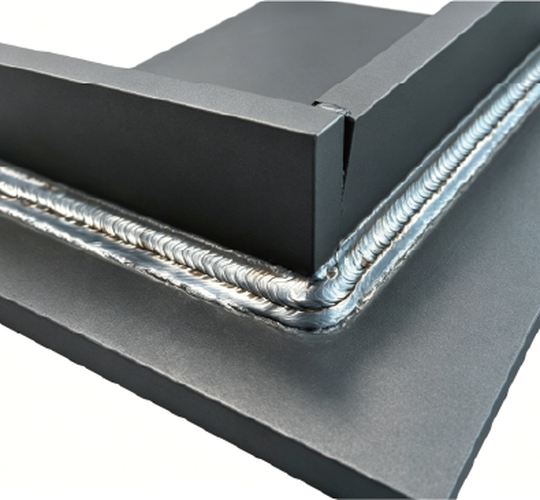

Continuous Seam Welding

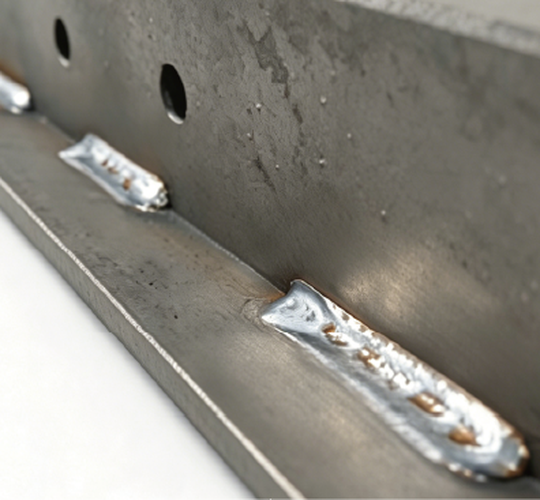

Intermittent Seam Welding

HGXD Standardized Machine Solution

Arc Welding Machine Set Technical Specifications Comparison
	HGXD Arc Welding Machine Set	HGXD Arc Welding Machine Set
Product Model	Ultra-thin plate (≥0.4mm)	Medium-thick plate (≥4mm)
Rated Input Voltage/Frequency	3P~380(±25%，)50-60Hz	3P~380(±25%，)50-60Hz
Rated Input Capacity (KVA)	13.5	24
Rated Output Voltage Range (V)	12-40	12-45
Rated Current Range (A)	30-350	30-500
Rated No-Load Voltage	76	85
Duty Cycle 100%, 40°C	275	390
Wire Diameter (mm)	0.8/1.0/1.2	0.8/1.0/1.2/1.6
Cooling Method	Intelligent air cooling	Water cooling
Weight (kg)	47	52
