Robot Body

HDR General-Purpose Industrial Robot

Reliably covers automotive and photovoltaic automation lines

Defining New Standards for General-Purpose Robots

Every aspect, from body design to control algorithms, has been rigorously validated

Intelligent System • User-Friendly Operation

40% Improved Sensitivity

68.4W Lower Operating Power

1000M Storage Units

Equipped with the new-generation Hi7 intelligent controller, an all-new SafeSpace 2.0 safety system, and a dual-core high-performance main control module, it delivers extreme energy efficiency and massive task storage capability.

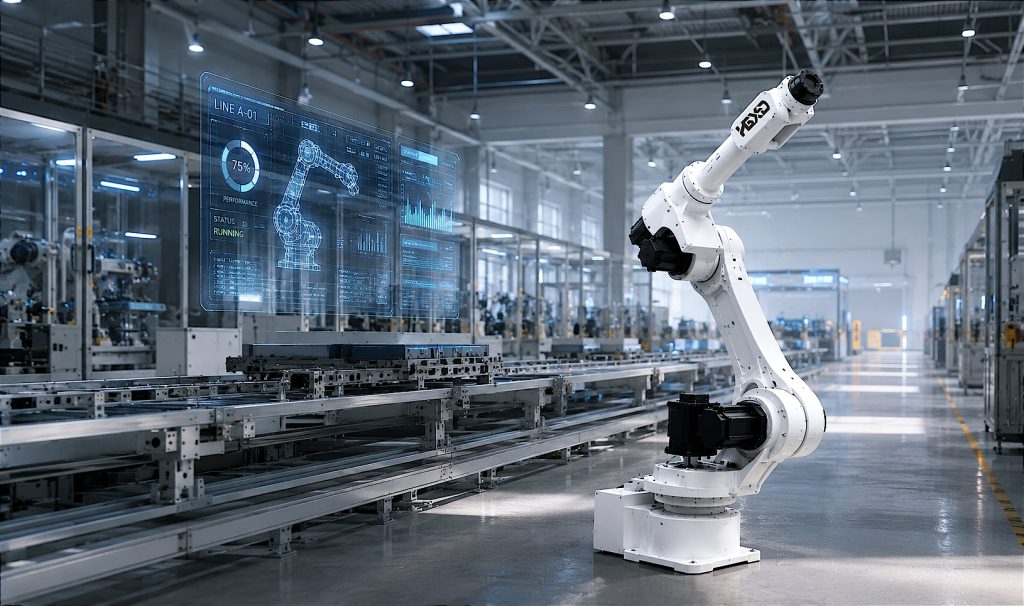

Intelligent System • User-Friendly Operation

Full Coverage • Adaptable to Diverse Applications

600kg Core Payload Up To

3481mm Working Radius Up To

20+ Model Matrix Up To

Building a robot product matrix covering the full 6–600 kg payload range with a maximum working radius of up to 3481 mm, it enables efficient and flexible automation deployment.

One Machine, Many Capabilities • Enabling Flexible Manufacturing

20+ Process Scenarios

10+ Industries Covered

100% Flexible Adaptation

Widely applied in welding, material handling, palletizing, loading/unloading and many other automation scenarios; it can be flexibly deployed according to process needs to achieve stable, efficient intelligent operation.

One Machine, Many Capabilities • Enabling Flexible Manufacturing

Comprehensive Safety Protection

Multiple robust safeguards for worry-free operation

Comprehensively avoids equipment failures and human-robot interaction risks

Adapted to complex industrial production scenarios, it keeps the production line running stably, safely and in compliance over the long term while balancing efficient production with operational safety.

Equipped with a new-generation independent safety controller

Safeguards equipment operation and human-robot collaboration

Integrates over 50 professional safety protection features

Backed by multiple international safety certifications, with the entire series certified to ISO9001 and other international standards

HGXD H-Series

HDR General-Purpose Industrial Robot Technical Specifications Comparison
	HDR8-14	HDR10L-19	HDR20-17	HDR50-22	HDR220-26

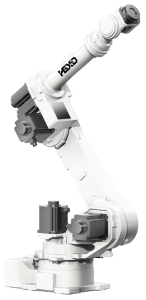

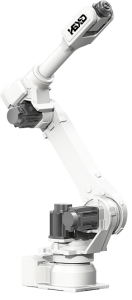

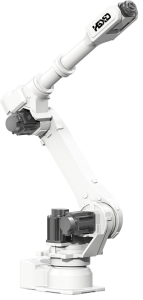

Product Model	HDR8-14	HDR10L-19	HDR20-17	HDR50-22	HDR220-26
Payload	6kg	10kg	20kg	50kg	220kg
Reach	1430mm	1994mm	1742mm	2239mm	2666mm
Controlled Axes	6	6	6	6	6
Motion Range	±172° +180°～-76° +180°～-82° ±180° ±135° ±360°	±185° +195°～-70° +180°～-80° ±195° ±135° ±360°	±185° +195°～-70° +180°～-80° ±195° ±135° ±360°	±180° +170°～-65° +180°～-80° ±360° ±125° ±360°	±180° +155°～+10° +190°～-80° ±360° ±128° ±360°
Configurable Axes	16	16	16	16	16
Allowable Torque	1.8kgf.m 1.8kgf.m 0.8kgf.m	1.8kgf.m 1.8kgf.m 0.8kgf.m	4kgf.m 4kgf.m 2kgf.m	22kgf.m 22kgf.m 15kgf.m	145kgf.m 145kgf.m 79kgf.m
Working Speed	230°/s 230°/s 230°/s 430°/s 430°/s 640°/s	190°/s 180°/s 190°/s 380°/s 380°/s 600°/s	190°/s 180°/s 190°/s 380°/s 380°/s 600°/s	175°/s 175°/s 175°/s 250°/s 250°/s 350°/s	120°/s 105°/s 110°/s 145°/s 145°/s 220°/s
Approx. Weight	139kg	215kg	215kg	645kg	955kg

Multi-Scenario Applications

Widely applied across hardware & instrumentation, automotive, furniture, and new energy industries

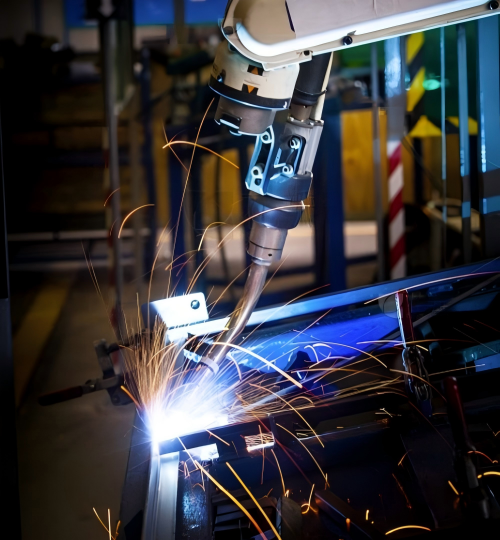

Arc Welding

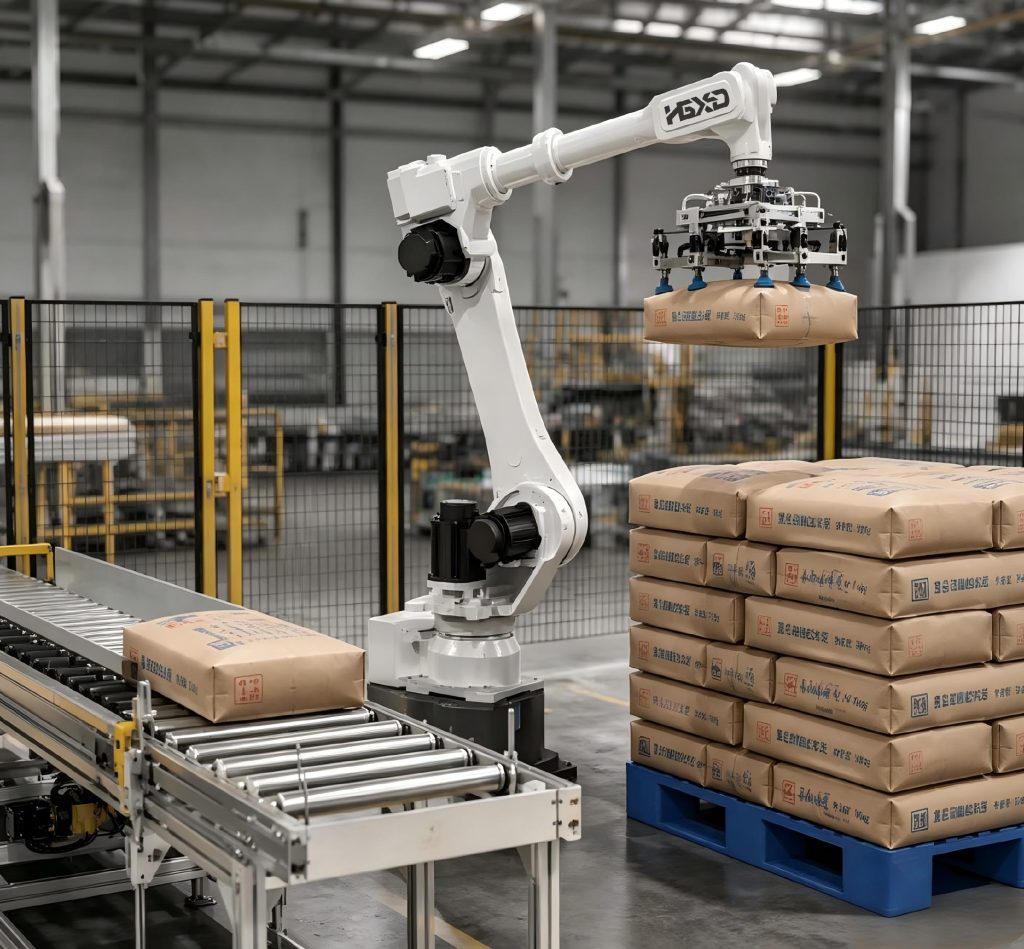

Palletizing

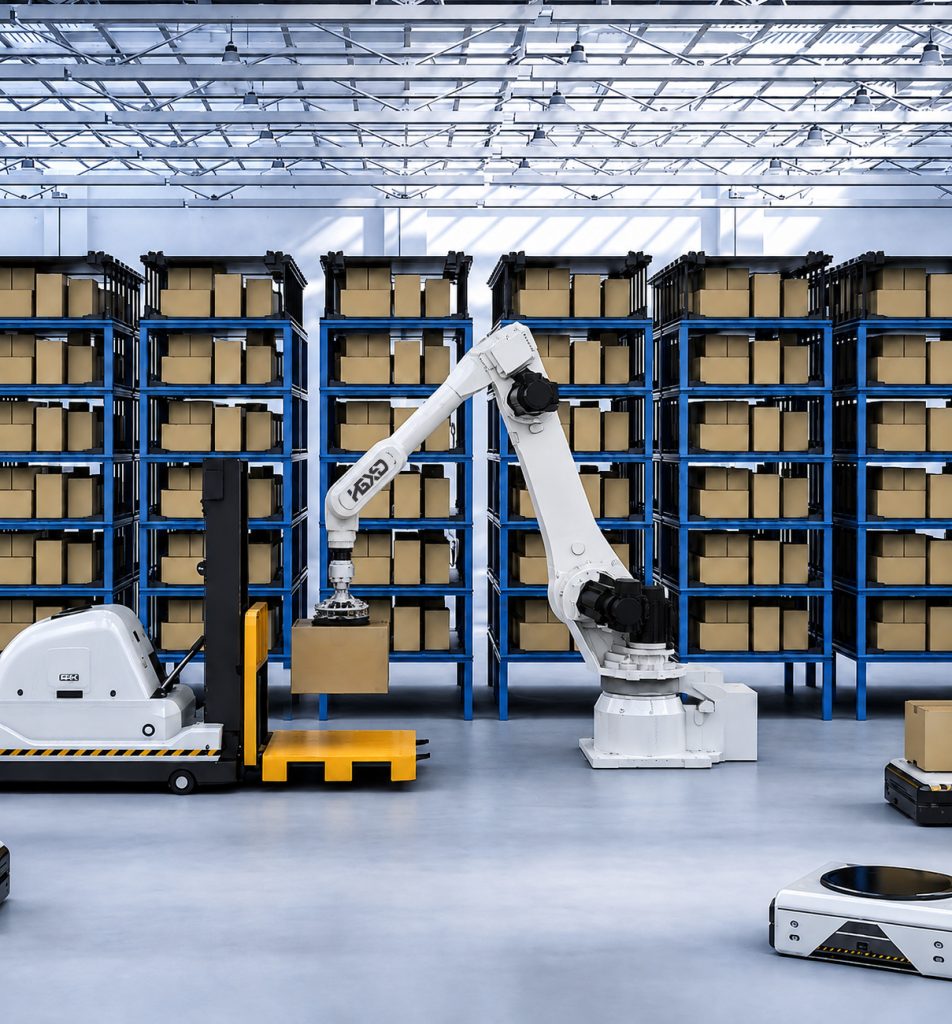

Material Handling

Cutting

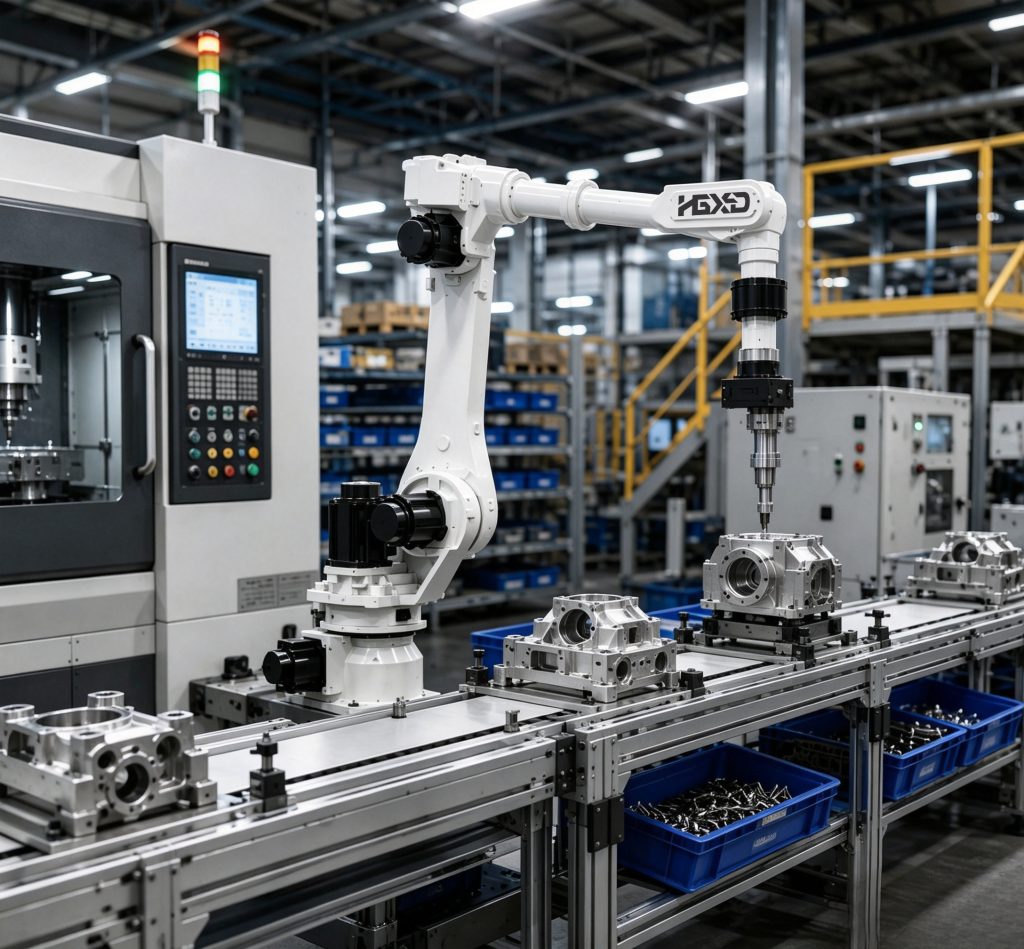

Assembly

Customer Cases

Jiudu Intelligence Technology (Shanghai) Co., Ltd.

I. Project Background Corrugated plates are widely used in rail transit and containers, with plate thickness of only 0.8–2mm and irregular curved surfaces, making heat input control for pulse spot welding extremely strict. Jiudu Intelligent Technology (Shanghai) Co., Ltd. faces the pain points of easy burn-through on thin plates, poor weld-spot consistency, heavy programming workload […]

Anhui Jiaokong Industrialized Construction Co., Ltd.

I. Project Background Thick-plate, high-strength steel components in bridge steel structures are characterized by numerous full-penetration groove welds, multi-layer multi-pass welding and stringent inspection standards. Anhui Transportation Holdings Industrialized Construction Co., Ltd., as a provincial state-owned backbone manufacturer of bridge steel structures, faces practical production pain points such as heavy thick-plate welding workloads, difficulty recruiting […]

Hunan Gentong Intelligent Equipment Co., Ltd.

I. Project Background The Sichuan–Tibet Railway tunnel steel arch frame has large demand and tight schedules, with harsh plateau conditions making it difficult to recruit and retain skilled welders and cutters. Steel arch frame processing is fragmented across multiple operations with frequent workpiece specification changeovers, and welding distortion and cutting errors easily cause on-site installation […]
